Capable of serving both as well-structured medium utility tractors and as compact open-field machines, the Landini 6H series aims to ensure an optimal balance between performance and operating costs through technical and functional solutions designed to enhance the efficiency and hourly productivity of the machines across a wide range of applications
From shallow soil cultivation to road transport, passing through maintenance and handling activities in livestock and forage operations, and even reaching summer and winter urban road maintenance tasks. This wide and diversified mission profile clearly shows how versatility is the defining feature of the Landini “Serie 6H”. The range includes two models able to ensure an optimal balance between performance and operating costs thanks to a structural configuration that combines a wheelbase of 2,420 millimeters with an unladen weight of around 4,800 kilograms.
These parameters allow the machines to function both as compact open-field tractors and as structured medium utility models. The first mission profile is further supported by the possibility of mounting rear tires with a diameter of 38 inches which, in addition to enhancing traction, also ensure load capacities above class standards.
The typical applications of medium utility tractors, on the other hand, are supported by a steering angle of 55 degrees, designed to improve maneuverability in environments with limited space, and by the possibility of installing an original Landini front loader directly at the factory to handle operations in livestock and forage environments.
Maximum operational efficiency regardless of the application is therefore ensured, particularly thanks to the presence of the “T-Tronic” transmission. This is a three-stage powershift operating on a mechanical gearbox with three ranges and four gears, offering 36 forward and 12 reverse speeds. These can be increased to 48+16 through a creeper gear operating in the low range.
Reverse gears are engaged through an electrohydraulic shuttle called “Reverse Powershuttle”, whose responsiveness can be modulated to provide more or less aggressive reactions depending on the task. Meanwhile, the “Park Lock” function allows the tractor to be securely held even on sloping terrain without the need to press the brake pedal.
With this configuration, the transmission always provides the most suitable ratio to optimize performance and fuel consumption. This goal is also strongly supported by the FPT “F36” four-cylinder engines with a displacement of 3.6 liters, delivering 119 and 127 horsepower of maximum power at 2,200 rpm in the “Serie 6-125H” and “Serie 6-135H” models respectively.
Compliant with Stage V emissions standards through SCR systems combined with DOC catalysts and DPF filters—without the use of EGR systems—the engines feature torque curves that are always linear and progressive, ensuring high operating elasticity without excessive fuel consumption, even in demanding applications that require full power.
In such conditions, the machines can also benefit from a closed-center hydraulic system delivering 38 liters per minute for onboard services and 110 liters per minute entirely dedicated to powering up to five auxiliary remote valves and a rear hitch with a maximum lifting capacity of 6,000 kilograms. The latter can optionally be complemented by a similar front linkage with a lifting capacity of 2,200 kilograms.
Electrohydraulic engagement is also provided for the four-wheel drive, the differential lock, and the PTO. The PTO unit is available with two or four operating speeds, combining the standard 540 and 1,000 rpm with eco modes. An optional electronically controlled independent front suspension axle is also available, improving working comfort and helping stabilize the tractor during road travel.
Standard equipment includes the ISOBUS system for communication with implements, satellite guidance preparation—achievable through the interconnection of the “Ags-2” antenna with the “Aes-35” steering wheel and the “X25” monitor—and the “Landini Fleet & Remote Diagnostic Management” system, which monitors the main activities of a tractor fleet at any time and anywhere in the world.
Through computers or mobile devices, the data can be accessed remotely together with information on fuel consumption, levels, temperatures, and work sessions, allowing operators to constantly monitor machine efficiency and enable remote diagnostics.
Comfort Serving Productivity

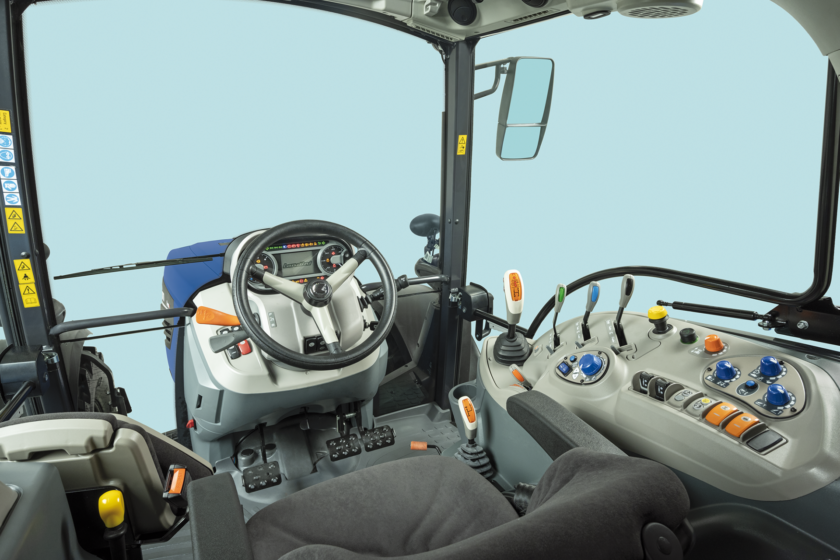

Designed to operate full time, the Landini “Serie 6H” tractors offer high standards of comfort and ease of operation. The engineers of the Emilia-based brand pursued these goals by working on the four-pillar cab structure, visibility, and control ergonomics.
Optimal isolation of the cab from vibrations is ensured by a mechanical suspension system operating through springs controlled by hydraulic shock absorbers capable of providing up to 96 millimeters of travel. Full visibility over the working area is guaranteed by wide athermic glass panels and transparent roof sections that facilitate the use of the aforementioned front loader.
The management of the loader is handled through a dedicated electro-proportional joystick that also allows control of the rear hitch and the engagement of creeper gears. Finally, the presence of ten LED work lights ensures full usability of the machines even in conditions of poor or no visibility.
